Industrial-Scale 3D Printer Build

3D Printing Integration Fusion 360 Documentation

This build was a personal challenge I took on over my first winter break of college. I have used 3D printers for years, but I wanted to understand the full machine, not just the slicer settings. I built a large-format printer from scratch and focused on the parts that usually cause problems in real use: motion alignment, wiring, thermal control, and repeatable calibration. The goal was a printer that is easy to run, easy to diagnose, and consistent on large parts.

Role
Designer and builder
Goal
Build a reliable large-format printer and learn how to debug every subsystem

Design Approach

I approached the build like a system integration problem. I started with the user-facing requirements I cared about most: a large removable glass bed, stable temperatures, and a control workflow that felt practical. From there I worked through structure and motion, then wiring and electronics, and finally calibration and print validation. On a machine this size, small alignment issues show up fast, so the focus was on rigidity, serviceability, and predictable behavior.

Constraints & early decisions
  • Large build envelope: prioritized bed flatness, rigidity, and usable Z height for real parts.
  • High-temp capability: designed around a high-temperature toolhead and a heated bed suitable for large prints.
  • Day-to-day usability: built in a touchscreen and Wi-Fi workflow so loading jobs and monitoring prints was simple.

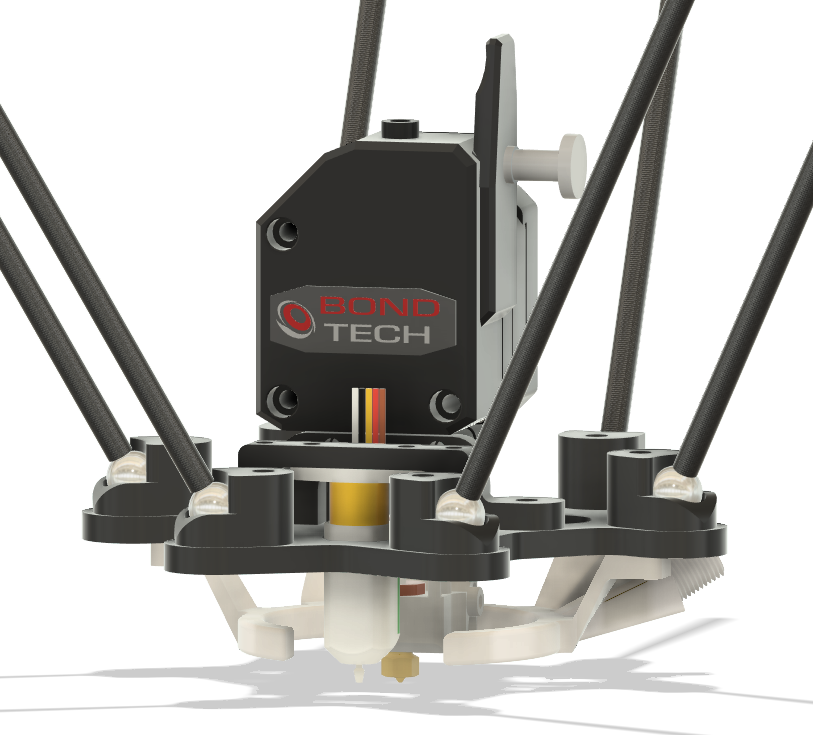

Figure 1 — System layout. The layout was built around alignment, clean wiring paths, and access for maintenance. (Click image to expand.)

Validation & Failure Analysis

Two problems taught me the most during early prints: heated bed temperature behavior and part-cooling airflow. Both produced clear signatures in printed parts, which made it easier to isolate the cause and verify fixes.

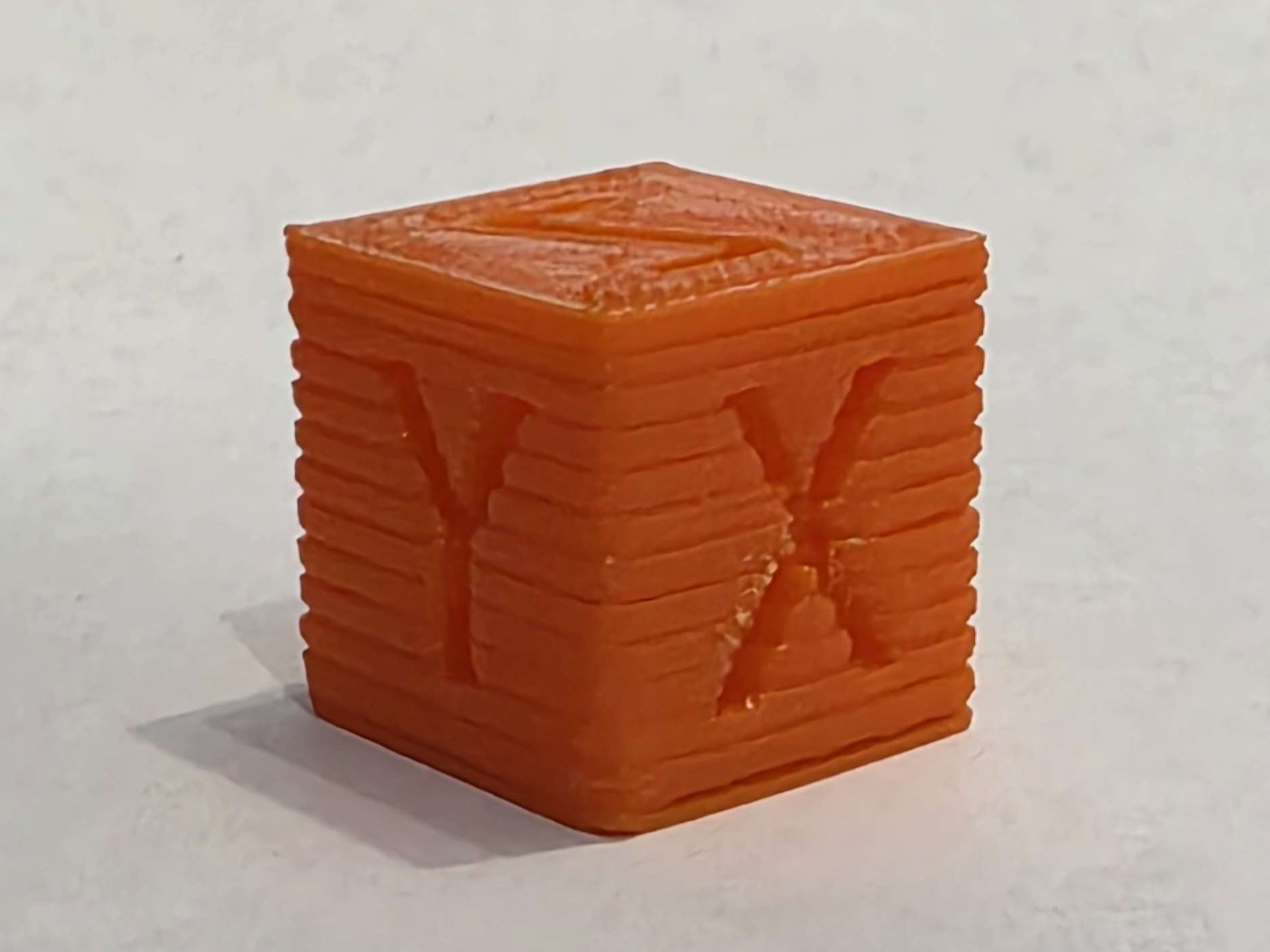

Bang-bang bed control. On/off temperature cycling produced evenly spaced ridges. (Click image to expand.)
Bed off, then bang-bang control on again Switching control mid-print created a visible surface transition and confirmed the cause. (Click image to expand.)
Heated bed control: what happened and what I changed
  • Observed symptom: repeating ridges that did not match typical motion artifacts.
  • Diagnosis: the standalone controller was using bang-bang control, so the bed temperature oscillated.
  • Fix: removed the standalone electronics, wired the thermistor into my Duet board, and ran PID control.

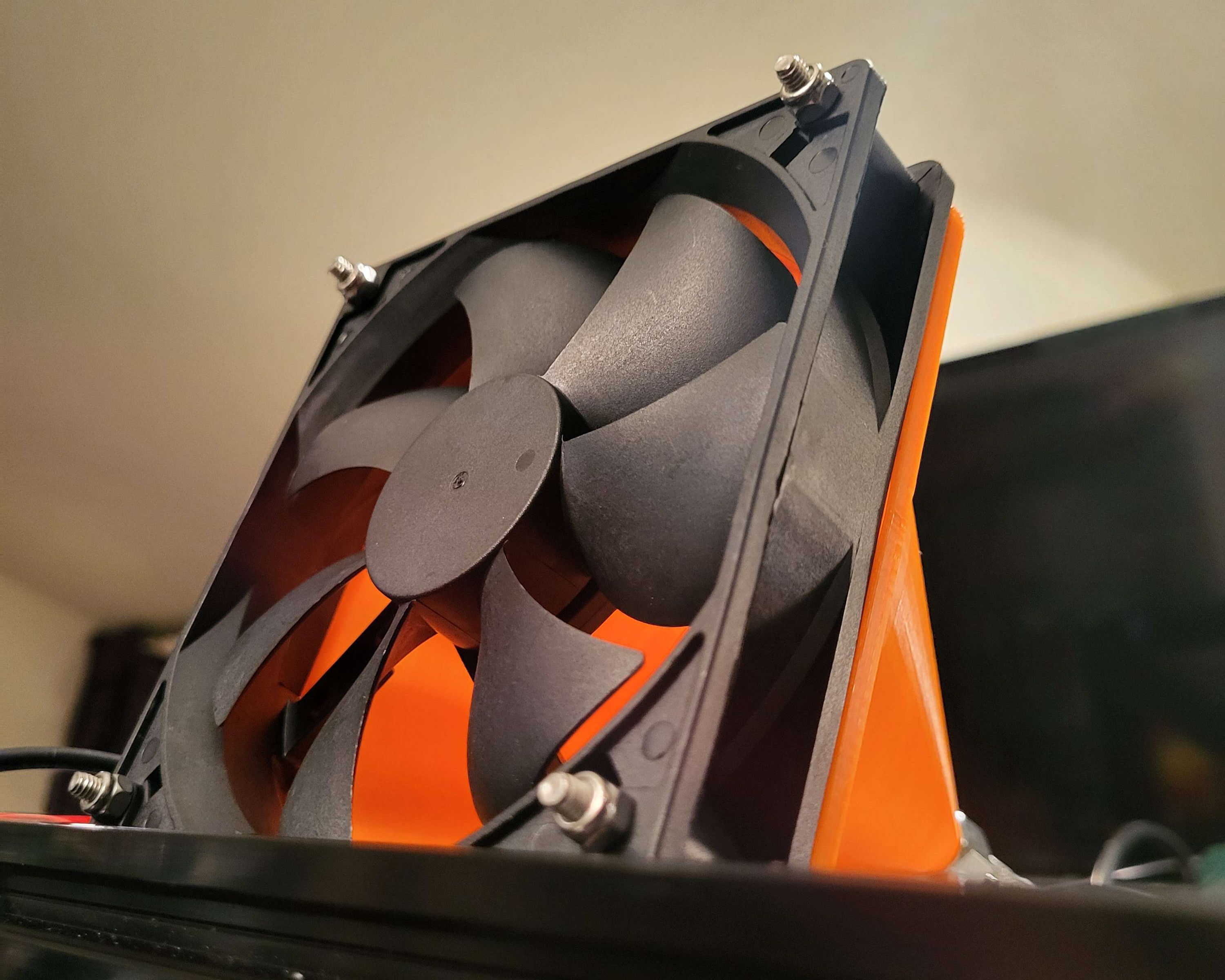

Part cooling iteration. The first duct design looked reasonable but failed in practice due to poor airflow coupling. (Click image to expand.)

To reduce weight on the toolhead, I moved the fan away from the nozzle and tried to duct air down to the part. The idea worked on paper, but most of the airflow leaked out instead of making it to the nozzle. I ended up validating airflow with quick tests and learned that cooling needs to be designed and verified like any other subsystem, not assumed.

Results

  • Built a large-format printer end-to-end, including motion, wiring, controls, and calibration workflow.
  • Identified and fixed a print-quality issue caused by bang-bang bed control by integrating PID control through the Duet.
  • Integrated Wi-Fi and a touchscreen interface to make loading and monitoring prints straightforward.

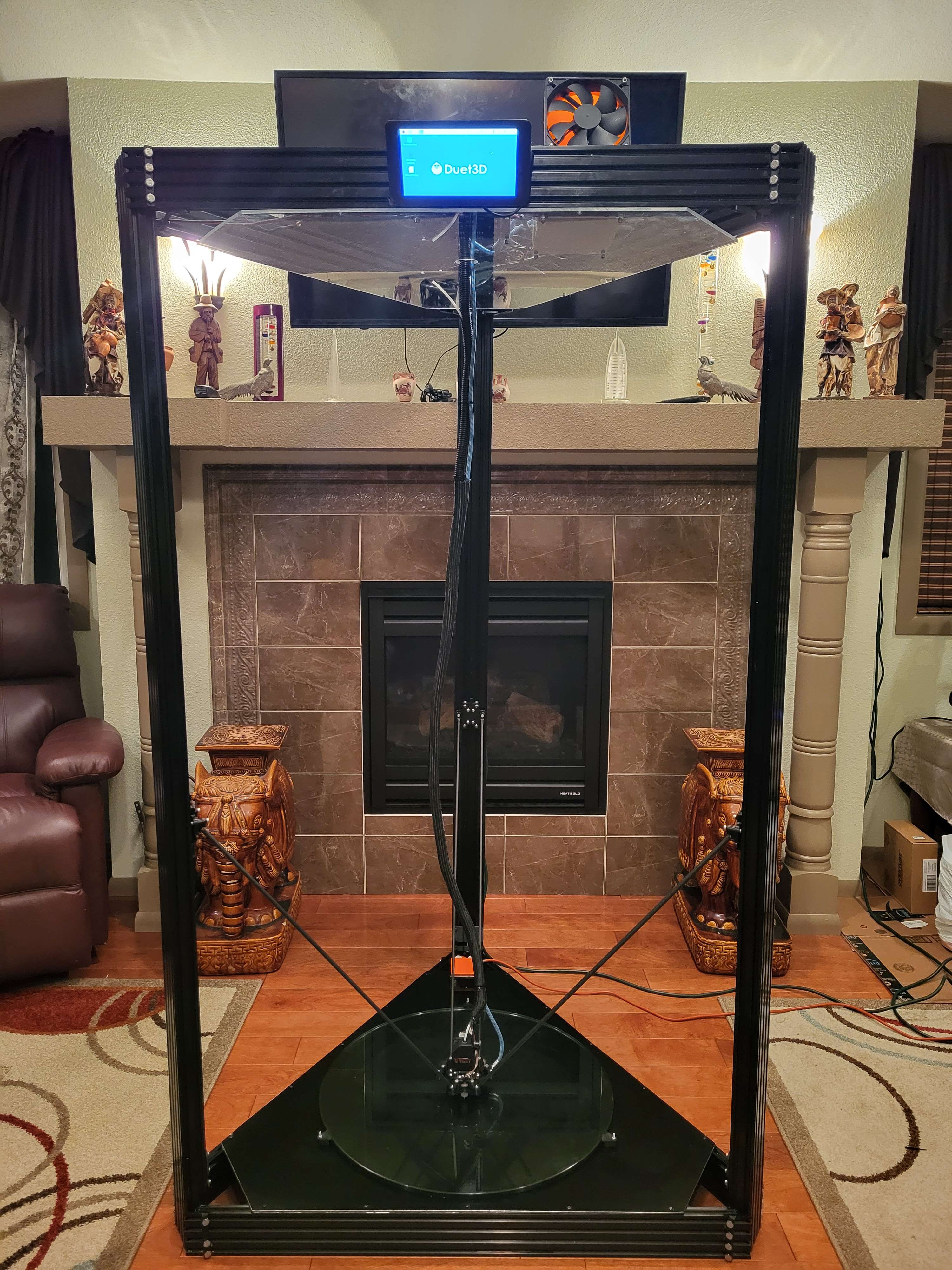

Figure 3 — Final build. Working large-format system, ready for continued upgrades. (Click image to expand.)
